德国顶尖的数字相机制造专家MICROBOX携带71M相机亮相展会，该相机质量可靠，性能优越，同时还为客户定制开发高质量的OEM成像产品，可满足行业客户的特定需求，在整个机器视觉行业中, MICROBOX的产品通常被认为是能够满足最苛刻环境的选择。

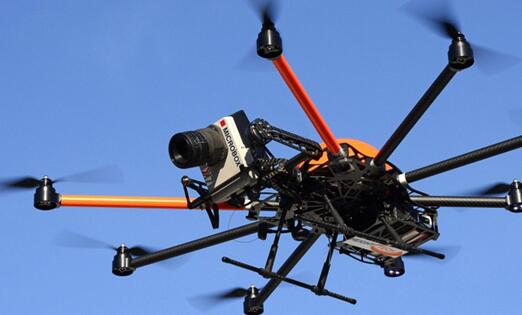

MICROBOX拥有7100万的超高分辨率，同时提供黑白和彩色版本，其采用的CMOSIS CHR71M CMOS传感器能提供卓越的图像品质，广泛应用于工业机器视觉的高端测量和检测应用，航空航天成像，以及文档成像领域。
SPECIFICATION 产品参数
Sensor type | CMOS area sensor 71MP, electronic shutter
Sensor dimension | 10000(H) x 7096(W) effective active pixels
Sensor pixel size | 3.1µm x 3.1µm
Chroma | RGB Bayer color
Dynamic range | 63 dB
Exposure rate | 0,0001 – 2,0 sec
Sensitivity | 0.15 A/W (@550nm)
Conversion factor | ~63 µV/e
Frame rate | 2.5 fps full color
Data bit depth | 8, 12 or 16
Capture mode | Single shot full frame, windowed, video mode
Input requirement | Single supply; 10-16V DC, max 1A
Power consumption | Operational peak: 6 Watts, Stand-by: 1,8 Watts
Output interface | USB 2.0/3.0 Standard (Hi-Speed/SuperSpeed)
Lenses | Wide range with adapters for different mount types
Dimension | 105mm x 125mm x 28.5mm (W x D x H)
Weight | 500g / 225g [Mg], without adapter and lens
RoHS | Directive 2002/95/EC
Device driver | Available for 64-bit Microsoft® Windows® 7/8/8.1/10
SDK | Fully programmable interface C++ communication library provided as DLL
Servicing application | Fully controllable application (camera adjustment, color calibration, status information, capturing and storage purposes)
Imaging | White / black / linear / color correction, lateral chromatic aberration and vignetting lens correction, Different Demosaicing types, median and sharpening filtering
